Avoid These CNC Pitfalls in Illuminated Signmaking

Illuminated signs remain one of the most powerful tools for brand visibility. From high street shopfronts to large architectural fascias, CNC routers are the backbone of modern signage production, shaping opal acrylic, aluminium composite, and light-transmitting plastics with accuracy and speed.
Expectations around lighting quality, durability and edge clarity have never been higher. Clients want brighter, cleaner and more energy-efficient signs. Production teams want faster workflows, less waste and reliable results. But beneath the polished finishes are several common CNC challenges that can affect quality, drive up costs or create delays.

From heat-induced warping to poor part fit and inconsistent maintenance, this article highlights key pitfalls signmakers face, and how to avoid them.

Poor Edge Quality Ruins Lighting Performance

In edge-lit and backlit signage, the quality of each cut edge directly affects lighting performance. Rough or scalloped edges scatter light, leading to visible hotspots or uneven illumination. These issues often go unnoticed until the sign is installed and powered on.

The root causes are often down to the wrong cutter geometry, tool wear or excessive machine vibration. Poor-quality tools can dull quickly, especially when cutting tough extruded acrylic, which increases heat and reduces clarity. Flame polishing may improve appearance, but it can also introduce internal stress that later leads to surface crazing under LED heat.

To achieve cleaner, more consistent results, use high-quality polished single-flute cutters engineered for plastics, such as the CP or CP-AL ranges from Complete CNC Solutions. These tools are designed to maintain sharpness, reduce friction and produce smooth edges even at high feed rates. Mechanical finishing methods such as mop polishing or buffing can be used to achieve a clear, stress-free edge without the drawbacks of flame polishing.

For best results, use a CNC router with smooth, vibration-free motion control. Servo-driven machines with well-balanced gantries ensure clean, chatter-free cuts that are essential for premium illuminated signage.

Complete CNC | Poor Edge Quality Ruins Lighting Performance

Heat Build-Up Leads to Melted Acrylic and Rework

Acrylic is highly sensitive to heat, and excess friction at the tool face can quickly cause melting, chip bonding or a cloudy finish. These thermal defects not only compromise visual quality but can affect part fit, bonding surfaces and long-term durability under LED exposure.

Improper feed and speed combinations are the most common culprits. If the spindle is running too fast but the cutter is not moving quickly enough through the material, heat builds up in one area. Conversely, feeding too aggressively without maintaining the correct chip load can cause smearing and cutter clogging.

Run correct spindle speeds and feed rates to maintain a proper chip load on the tooling. This ensures the heat exits with the chip, rather than staying on the material or cutter.
It’s not just about airflow. It’s about cutting clean and letting the chips carry the heat away.

Complete CNC | Heat Build-Up Leads to Melted Acrylic and Rework

Inaccurate Fits Cause Assembly Delays and Light Leaks

Illuminated signage projects often include trays, push-through letters, LED pockets and back panels. If one component is even slightly out of tolerance, it can cause delays, rework or lighting issues. A poor fit may let light leak through joins or require hand-filing and adjustments during assembly.

These problems are often caused by toolpath inaccuracies, material movement, thermal drift on the machine bed, or incorrect offset settings in the CAM software. Even a worn cutter can introduce small deviations that affect the final result.

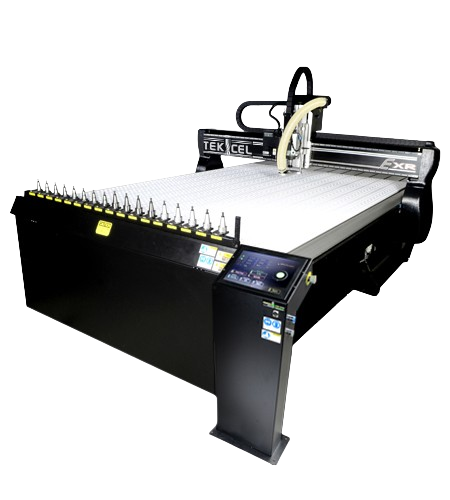

Prevention starts with sharp tools, tested offsets, secure clamping and a consistent nesting strategy. Always verify part dimensions with test cuts at the start of a run. Servo-driven CNC routers, such as the Tekcel EXR, deliver precise part-to-part consistency even across long batches.

When components fit cleanly and reliably, light spreads as intended, joins disappear and installation becomes faster and more predictable.

Complete CNC | Inaccurate Fits Cause Assembly Delays and Light Leaks

Dust and Contamination Compromise Sign Reliability

Dust might seem like a minor issue, but in illuminated signage production, it can affect everything from visual quality to electrical safety. Routing acrylic, aluminium and composite materials creates fine, static-prone particles. These can cling to parts, embed into adhesive surfaces, or accumulate near LED modules, causing brightness loss or failure over time.

Uncontrolled dust can scratch light-guide surfaces, reduce adhesion, and increase the risk of electrical faults or even fire in some materials. Many of these problems only become visible after installation, when signs flicker, dim, or show uneven lighting. Call-backs cost time and reputation.

Effective dust extraction is essential. High-efficiency vacuum systems with automatic start and stop reduce downtime and remove chips at the source. For demanding workloads, the Tekcel Heavy Duty Extraction System offers high-capacity dust and chip removal across plastics, metals and composites.

Clean cutting reduces defects, keeps components within tolerance, and protects both the finish and function of every sign.

Complete CNC | Dust and Contamination Compromise Sign Reliability

Neglected Maintenance Causes Downtime and Inconsistent Cuts

Even the most robust CNC routers depend on consistent upkeep. In busy signage workshops, maintenance can be sidelined until something goes wrong. That’s when surface banding, poor edge finish or alignment issues begin to appear.

Many of these problems stem from overlooked basics. Dry linear rails, blocked extraction ports, or worn collets can compromise precision and force operators to slow down or rework jobs.

The most effective approach is preventative, not reactive. Daily checks like cleaning rails, inspecting tool condition and clearing vacuum lines take minutes and pay dividends in uptime. Over time, scheduling deeper checks on spindles, belts and motion systems helps avoid unexpected breakdowns.

Tekcel CNC routers are designed for dependable operation and require minimal daily maintenance. But they still benefit from proactive care. Building small tasks into your workflow keeps the machine running smoothly and safeguards both quality and delivery schedules.

Final Thoughts: From CNC Pitfalls to Signmaking Precision

Producing illuminated signage that meets today's expectations means more than cutting clean shapes. Success depends on managing heat, achieving optical-grade edges, avoiding fit issues, controlling dust, and keeping equipment in peak condition.

These are not obscure problems, they are common friction points in modern signmaking. But every one of them can be addressed with the right tools, knowledge and setup.

If your current router setup is causing waste, slowing jobs down or limiting what you can deliver, it might be time to rethink your process. Tekcel EXR routers, combined with expert advice and tailored support, can help your workshop avoid these pitfalls and create premium illuminated signs that perform flawlessly from day one.

Talk to the team at Complete CNC Solutions to explore your options.
